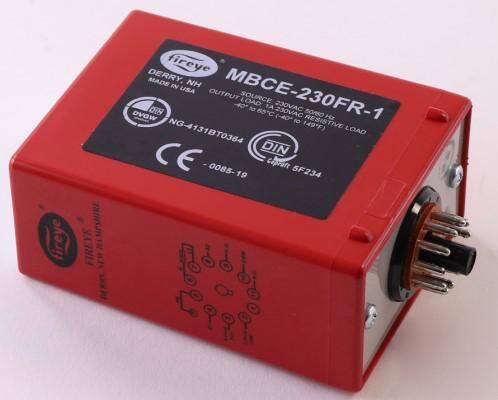

FIREYE MBCE-230FR-1 Flame Detection Module: Core Guardian of Industrial Combustion Safety

Product Overview

FIRE MBCE-230FR-1 is a high-performance UV flame detection module designed for safety monitoring of industrial burners. The module adopts advanced ultraviolet detection technology, which can reliably detect various flame states. It is an important safety component in the combustion management system and widely used in boilers, furnaces and other industrial combustion equipment.

Core functional features

Precise flame detection capability

UV sensing technology: highly sensitive to UV radiation, capable of accurately identifying flame presence

Fast response time: millisecond response speed to ensure timely detection of flame state changes

High sensitivity adjustment: provide sensitivity adjustment function to adapt to different combustion conditions

Strong anti-jamming capability: effectively distinguish between real flame and background radiation interference

Reliable safety protection function

Self-diagnosis of fault: continuously monitor the status of module and find out internal fault in time

Safety failure protection: comply with the fail-safe principle and ensure the safe operation of the system

Clear status indication: LED indicator provides visual working status display

Relay output: provide flame state relay output signal

technical specifications

Power requirement: 24V AC/DC ± 10%

Power consumption: max. 5VA

Response time:<2 seconds

Output contact: SPDT 5A @ 250V AC

Sensitivity adjustment: potentiometer adjustment

Operating temperature: - 40 ° C to+85 ° C

Protection class: IP20

Certification standard: comply with UL and CSA international safety standards

application area

Industrial boiler system

Oil/Gas Industrial Boilers

Combined heat and power boiler

District heating boiler

Process heating equipment

Petrochemical heating furnace

Metallurgical smelting furnace

Ceramic kiln furnace

Energy equipment

Gas turbine combustion chamber

Incinerator system

Biomass combustion system

Installation and Configuration

Key points of installation

It shall be installed in a position protected from direct wind and rain

Ensure that the detection angle can cover the entire flame area

Avoid installation in areas subject to strong vibration

Keep the detection lens clean to avoid pollution affecting the detection effect

Parameter setting

The sensitivity setting is adjusted according to the fuel type

Set the appropriate response time parameter

Configure Output Relay Action Mode

Carry out site commissioning and function test

Product advantages

High reliability: industrial design, ensuring long-term stable operation

Precise detection: advanced ultraviolet detection technology, accurate identification of flame state

Flexible installation: modular design, easy for installation and maintenance

Easy operation: intuitive indicator light and simple debugging process

Safety certification: obtain multiple international safety certification and meet safety standards

Maintenance and Care

Routine maintenance

Clean the detection lens regularly

Check cable connection status

Verify test performance

Record operating status

Trouble shooting (troubleshooting)

Check power supply

Verify signal line

Detection sensitivity setting

Check cleanliness of optical components
